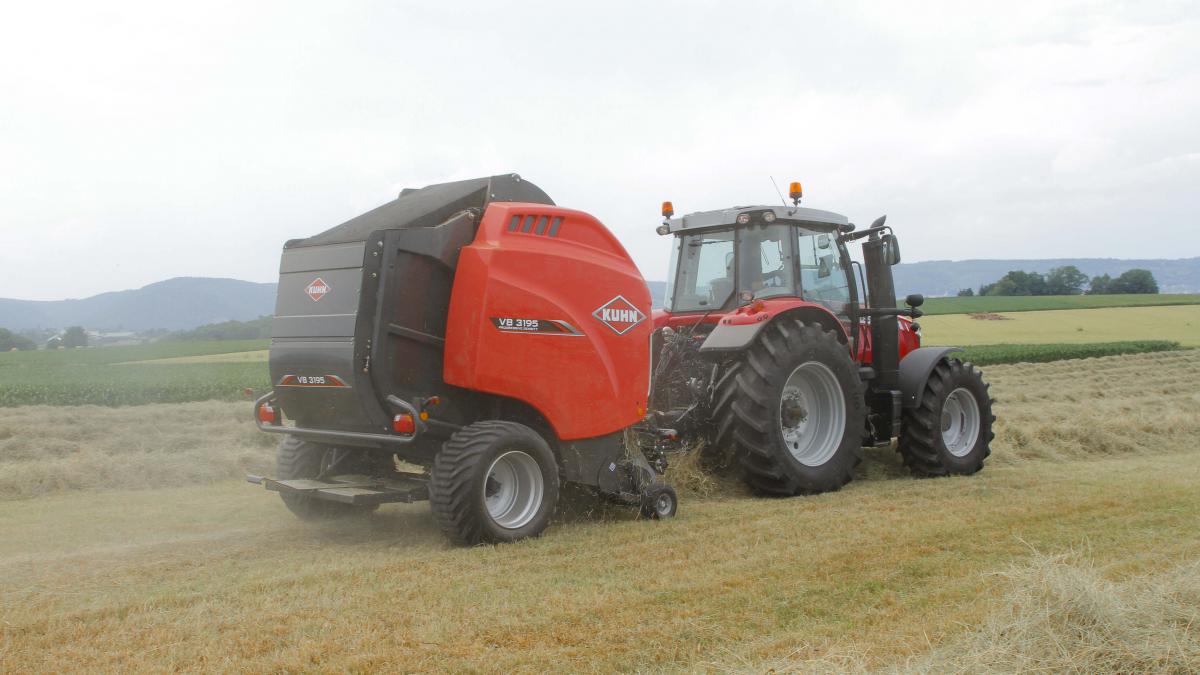

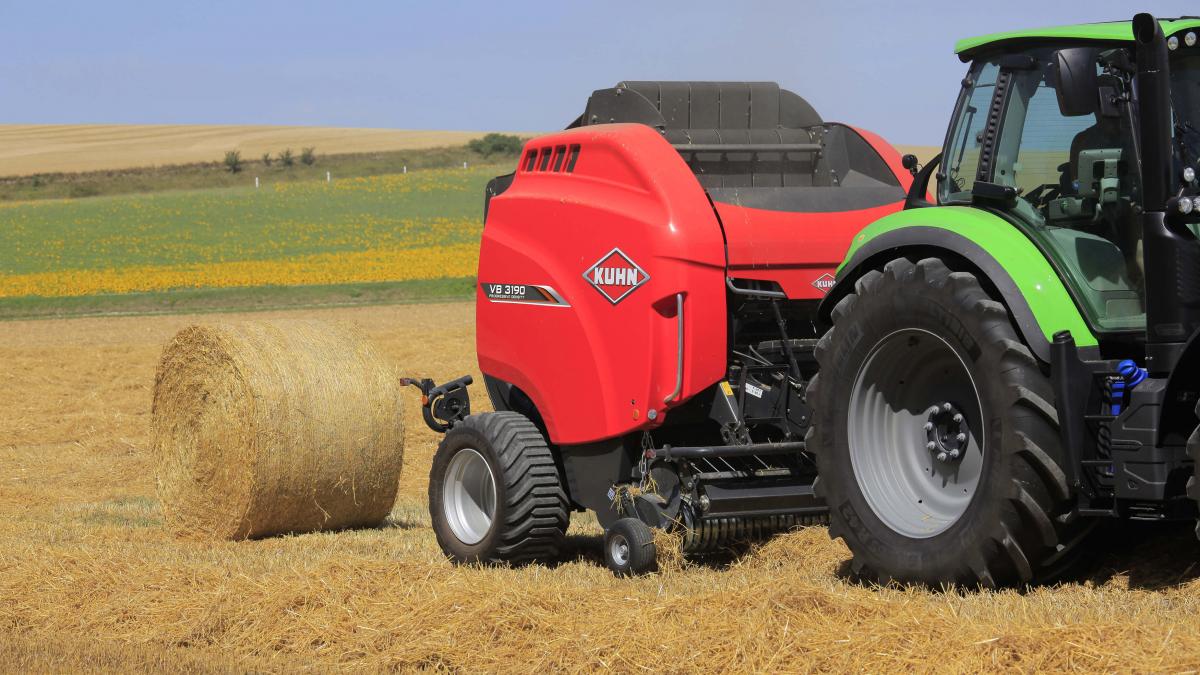

KUHN VB 3155™

KUHN round balers take bale to the next level The KUHN VB 3100 series offers a wide range of balers to suit your individual preferences. There is a VB 3100 baler for every job, every crop and every budget. KUHN swivel balers are designed with the latest innovations to maximize the benefits to farmers and contractors around the world.
KUHN VB 3155 is designed for baling dry plant mass, such as hay and straw.

Models VB 3155-3855 and 3160-33190 are equipped with a wide cam pick-up with a standard roller for plants. VB 3165-3195 are equipped with a heavy roller and a protective shield (diameter 217 mm). A pick-up system designed to maximize machine performance. The machine with a working width of 210 or 230 cm is able to work on all rolls and will not let you down even in the most difficult conditions. Straight tines help to release the plant mass and reduce its winding. The pick-up roller presses the weight against the pick-up teeth, reducing friction, thus limiting leaf loss and increasing the efficiency of the baler by leveling the roller.
The 230 cm pick-up model with rotor has a pendulum frame and optional swivel wheels as standard, allowing the pick-up to adapt to changing field conditions. The pegless guides of the plant mass on the 230 cm pick-ups provide more aggressive and efficient picking, applying the tooth to a longer length when required and pulling the weight away from the teeth when it approaches the feed system.

   Diameter of a roll, cm | 80-160
   Roll width, cm | 120
   Pick-up width, cm | 210
   The number of rows of teeth of the sorter | 4
   Forming rolls With the help of belts
   Number / type of belts 5 / sewn
   Binding type | Twine / net
   Drive from GDP, rpm | 540
   Transport width, m | 2.46
   Weight, kg | 2500
   Required tractor power, hp | 80
