Case IH Grain harvesters™

Series

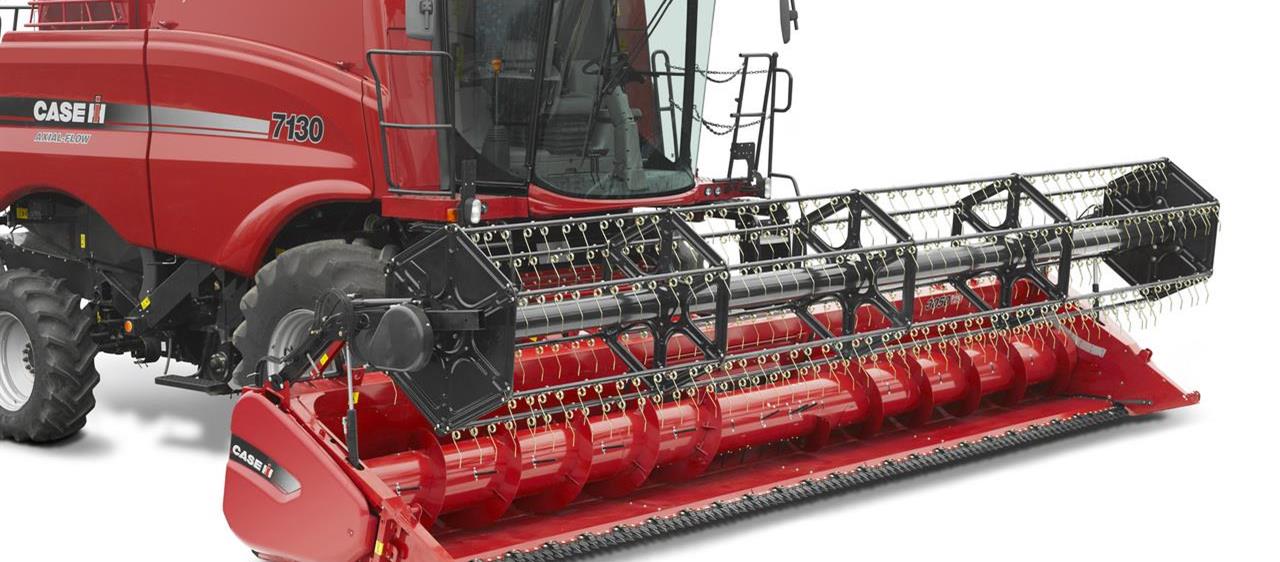

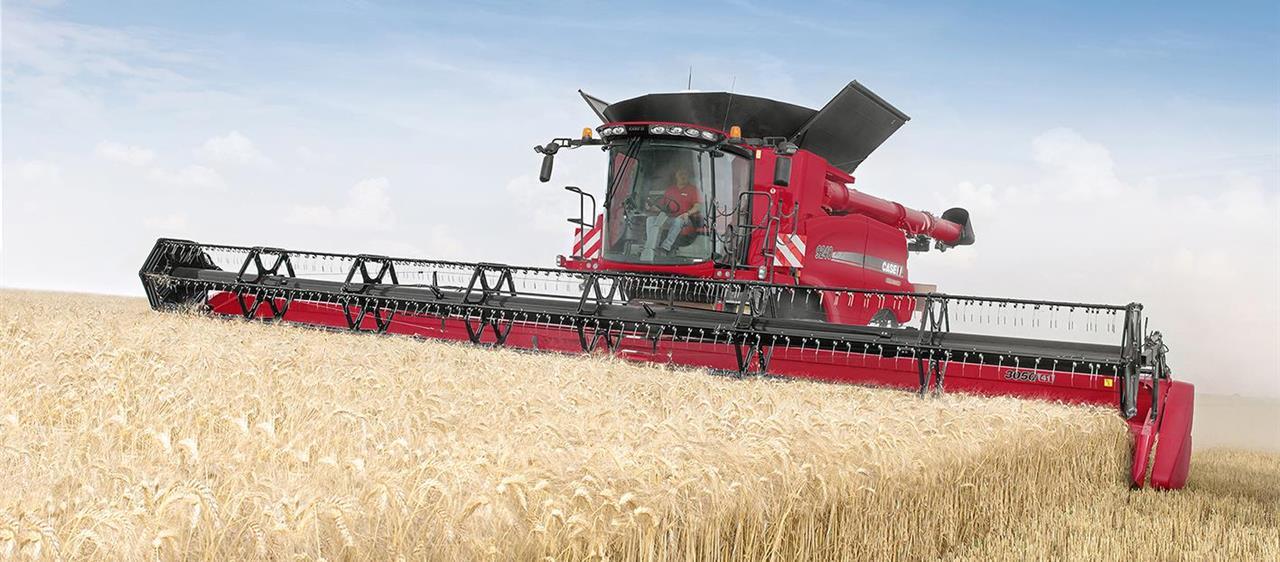

All Case IH harvesters have extremely strong frames and a patented design for attaching to the inclined chamber of the combine with a single lever.
Feature of harvesters 3020 is a possibility of de-fixing of a cutting bar that allows making a cut, leading the harvester directly on the earth. The 3020 harvester has the ability to bend up to 11.5 cm which is extremely useful when harvesting soybeans or peas.

3020 (TerraFlex)
3020 (TerraFlex)
Working width of the capturing device: 7.62 m (25’) | 9.14 m (30’) | 10.7 m (35’)
Type & version: For grain, equipped with a cutting bar
Weight: 2,113 kg | 2,554 kg | 2,980 kg

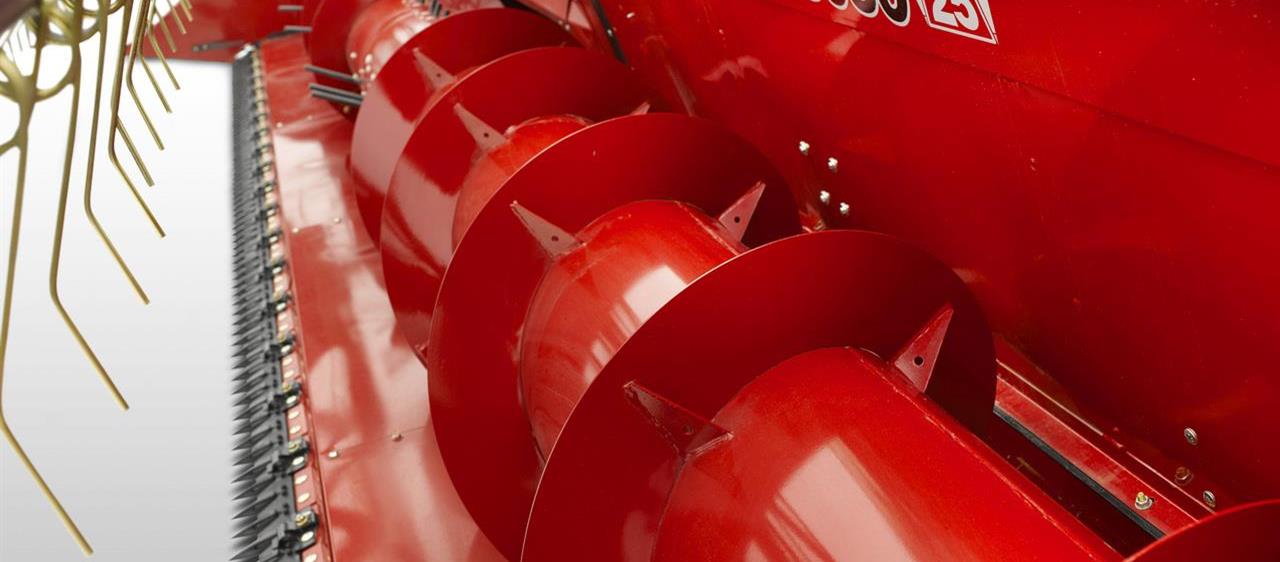

Auger: 660 mm diameter, rotational speed 158 rpm
Reel: 1,016 66, 6 cleats, hydraulic drive, rotational speed 5 to 61 rpm
Cutting device: Segment, 76.2 mm (3 inches), for “continuous cut” of “Sta-Sharp”

3050 (Varicut)
3050 (Varicut)
Working width of the capturing device: 7.62 m (25’) | 9.14 m (30’)
Type & version: For grain - with adjusted position of the cutting device
Weight: 2.450 kg | 3.135 kg
Auger: 1.070 mm diameter - rotational speed 135/166 rpm
Reel: 1.016 mm- 6 cleats - hydraulic drive - rotational speed 0 to 60 rpm
Cutting device: Segment - 76.2 mm (3 inches) for “continuous cut” of “Sta-Sharp”
3162 (Draper)
3162 (Draper)
Working width of the capturing device: 9.1 m (30’) | 10.7 m (35’) | 12.2 m (40’) | 14 m (45’)
Type & version: Harvester for collecting grain crops with a belt conveyor, a flexible bar and a top screw for collecting rapes
Weight: 2,837 kg | 3,352 kg | 3,783 kg | 4,256 kg
Auger: 660 mm diameter, rotational speed 158 rpm
Reel: Diameter 1.070 mm, horizontal stroke 578 mm, vertical stroke 201 mm, 6 cleats, hydraulic drive, speed 0 to 60 rpm
Overall width/length: 2.1/1.73 m
Cutting device: Toothed knife, knife stroke frequency 630 cycles per minute, hydraulic drive through the gearbox, cutting height 2.5 cm and more
