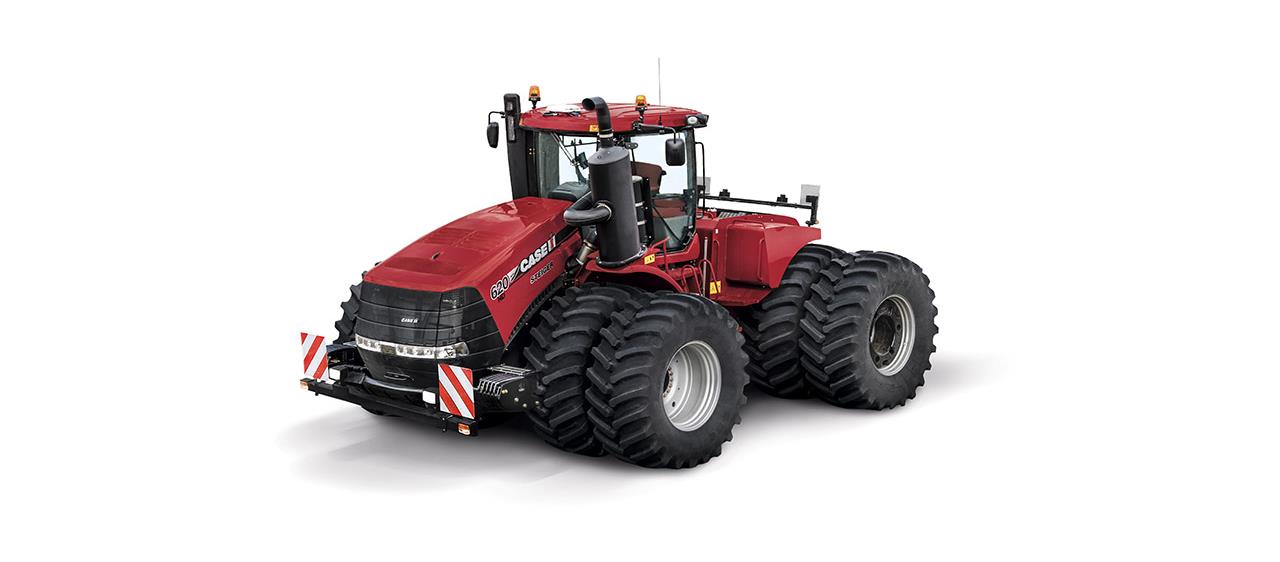

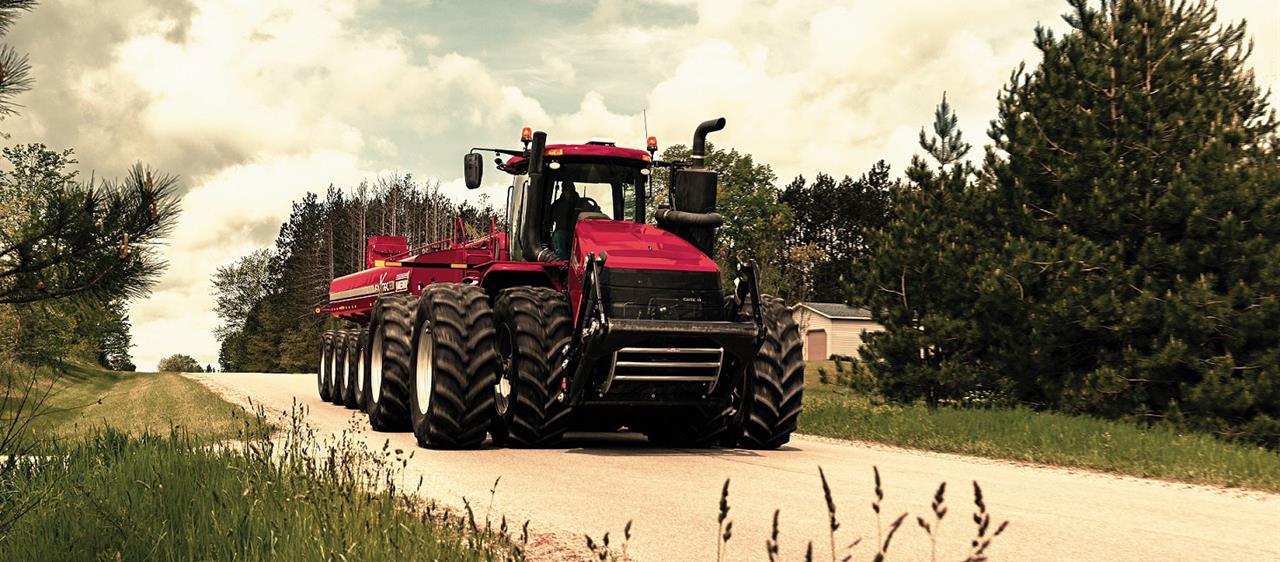

Steiger™

Series

The purpose of the Case IH Steiger series of tractors is to operate under difficult conditions with huge units. To successfully perform tasks of this level of complexity in the shortest possible time, Steiger tractors are equipped with a high-power FPT Cursor 13 engine and are assembled with reinforced components of the highest quality.

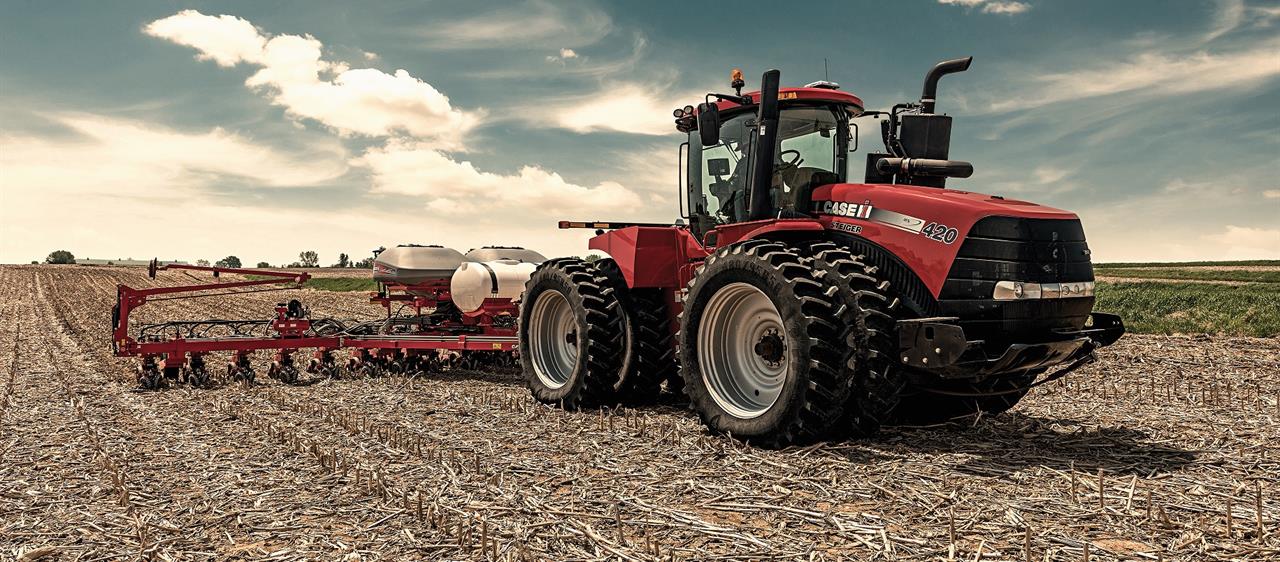

Operation with units with a large width of capture sets forth special requirements to the tractor system. That is why they are equipped with a high-performance hydraulic system, a powerful traction bar, and are prepared for the installation of GPS navigation system.
The cab of the Steiger tractor has the best noise insulation performance among competitors, intuitively located controls and monitoring devices, and at the same time has no obstacles for entire 360° viewing.
Modification of Case IH Steiger tractors are heavy-duty ones equipped with a unique crawler system. Quadtrac system uses four independent tracked motors that provide unsurpassed traction, smoothness and versatility. It is the use of four tracks instead of two ones, and this allows one to use the most of the entire traction potential of the tractor and at the same time avoid excessive soil compaction.

Steiger 500
Engine
Model: FTP Cursor 13 / Tier II
Capacity: 12.9 l
Rated power without Boost: 508 hp. (373 kW)
Rated power with Boost: 548 hp. (403 kW)
Maximum power with Boost: 558 hp. (410 kW)
Maximum torque: 2,374 Nm
Fuel system type: Unit Injection (pump-jet)
Fuel tank capacity: 1,170 l

Running gear
Wheel configuration: All-wheel drive (4WD), rotation by longitudinal bending of the frame
Transmission type: Fully-powered gear shifting (Full PowerShift)
Number of gears: 16 averse/2 reverse
Maximum travel speed: 40 km/h
Standard size of front wheels: Dual, 710/70R42
Standard size of rear wheels: Dual, 710/70R42

Auxiliary working systems
Number of pair of outlets of the hydraulic system of the external equipment: 6 pairs, reverse discharge system available
Hydraulic system capacity: 216 l/min.
Rear hitch category: Without three-point hitch, category IV traction rod
Maximum load capacity of the traction rod: Vertical up to 4,983 kg, traction up to 22,453 kg
PTO shaft rotational speed: No PTO shaft

Overall dimensions and weight
Length/width/height: 7.6/4.6/4.1 m
Weight (without ballasts weight): 19,885 kg

Steiger 550
Engine
Model: FTP Cursor 13 / Tier II
Capacity: 12.9 l
Rated power without Boost: 558 hp. (410 kW)
Rated power with Boost: 599 hp. (440 kW)
Maximum power with Boost: 614 hp. (614 kW)
Maximum torque: 2,611 Nm
Fuel system type: Common Rail
Fuel tank capacity: 1,722 l

Running gear
Wheel configuration: All-wheel drive (4WD), rotation by longitudinal bending of the frame
Transmission type: Fully-powered gear shifting (Full PowerShift)
Number of gears: 16 averse/2 reverse
Maximum travel speed: 40 km/h
Standard size of front wheels: Dual, 710/70R42
Standard size of rear wheels: Dual, 710/70R42

Auxiliary working systems
Number of pair of outlets of the hydraulic system of the external equipment: 6 pairs, reverse discharge system available
Hydraulic system capacity: 216 l/min.
Rear hitch category: Without three-point hitch, category IV traction rod
Maximum load capacity of the traction rod: Vertical up to 4,983 kg, traction up to 22,453 kg
PTO shaft rotational speed: No PTO shaft

Overall dimensions and weight
Length/width/height: 7.6/4.6/4.1 m
Weight (without ballasts weight): 22,602 kg

Steiger 600
Engine
Model: FTP Cursor 13 / Tier II
Capacity: 12.9 l
Rated power without Boost: 608 hp. (447 kW)
Maximum power without Boost: 669 hp. (492 kW)
Maximum power with Boost: 670 hp. (493 kW)
Maximum torque: 2,848 Nm
Fuel system type: Common Rail
Fuel tank capacity: 1,722 l

Running gear
Wheel configuration: All-wheel drive (4WD), rotation by longitudinal bending of the frame
Transmission type: Fully-powered gear shifting (Full PowerShift)
Number of gears: 16 averse/2 reverse
Maximum travel speed: 40 km/h
Standard size of front wheels: Dual, 710/70R42
Standard size of rear wheels: Dual, 710/70R42
Auxiliary working systems
Number of pair of outlets of the hydraulic system of the external equipment: 6 pairs, reverse discharge system available
Hydraulic system capacity: 216 l/min.
Rear hitch category: Without three-point hitch, category IV traction rod
Maximum load capacity of the traction rod: Vertical up to 4,983 kg, traction up to 22,453 kg
PTO shaft rotational speed: No PTO shaft

Overall dimensions and weight
Length/width/height: 7.6/4.6/4.1 m
Weight (without ballasts weight): 22,602 kg
