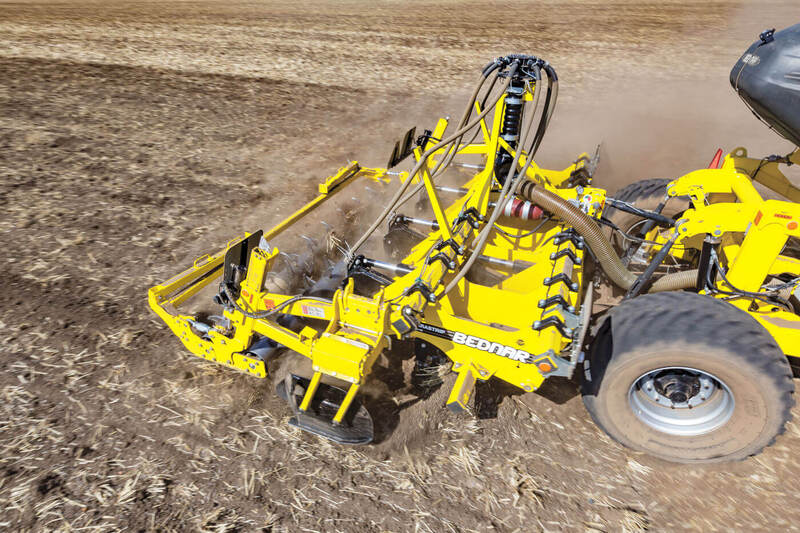

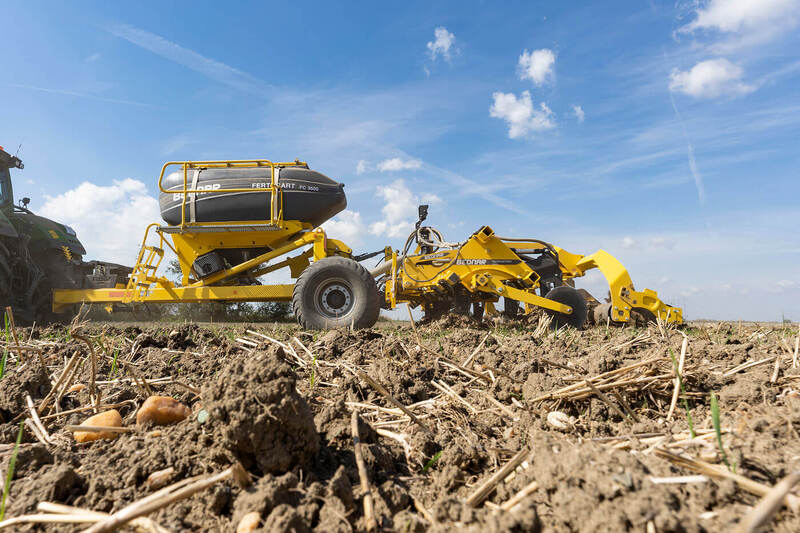

A strip-till cultivator BEDNAR TERRASTRIP ZN™
TERRASTRIP ZN is a deep loosener specially developed on the basis of TERRALAND. The high strength of the frame allows strip cultivation of the soil to a depth of 55 cm. TERRASTRIP ZN is produced with a complex and non-complex frame. The simple version of the unit is designed for strip cultivation with a row spacing of 45-51 cm, and the complex version - for a row spacing of 70-75 cm.
KEY FEATURES
The strip cultivator is designed for deep cultivation of the soil to a depth of up to 55 cm before sowing broad-row crops.
TERRASTRIP ZN is a unique combination of a deep loosener and a Strip-Till unit, which is suitable for deep strip cultivation for sowing broad-row crops such as corn, sunflower, rapeseed, sugar beet or soybean. Specially designed racks and a strong frame allow you to work the soil to a depth of 55 cm.
KEY FEATURES
The strip cultivator is designed for deep cultivation of the soil to a depth of up to 55 cm before sowing broad-row crops.
TERRASTRIP ZN is a unique combination of a deep loosener and a Strip-Till unit, which is suitable for deep strip cultivation for sowing broad-row crops such as corn, sunflower, rapeseed, sugar beet or soybean. Specially designed racks and a strong frame allow you to work the soil to a depth of 55 cm.
TERRASTRIP ZN 8R/45
Working width m 3.6
Transport width m 4.15
Transport length m 3.5
Transport height m 2.7
The number of work racks is 8
Maximum working depth* 20 - 55 cm
The distance between the racks in a row is 45 cm
Rack type Active - Mix / Zero - Mix
Frame clearance cm 80
Recommended power hp 300 - 400
One-piece frame type
Total weight** kg 3,230 - 4,300
Transport width m 4.15
Transport length m 3.5
Transport height m 2.7
The number of work racks is 8
Maximum working depth* 20 - 55 cm
The distance between the racks in a row is 45 cm
Rack type Active - Mix / Zero - Mix
Frame clearance cm 80
Recommended power hp 300 - 400
One-piece frame type
Total weight** kg 3,230 - 4,300
TERRASTRIP ZN8R/50
Working width m 4
Transport width m 4.15
Transport length m 3.5
Transport height m 2.7
The number of work racks is 8
Maximum working depth* 20 - 55 cm
The distance between racks in a row is 50 cm
Rack type Active - Mix / Zero - Mix
Frame clearance cm 80
Recommended power hp 300 - 400
One-piece frame type
Total weight** kg 3,650 – 4,250
Transport width m 4.15
Transport length m 3.5
Transport height m 2.7
The number of work racks is 8
Maximum working depth* 20 - 55 cm
The distance between racks in a row is 50 cm
Rack type Active - Mix / Zero - Mix
Frame clearance cm 80
Recommended power hp 300 - 400
One-piece frame type
Total weight** kg 3,650 – 4,250
TERRASTRIP ZN 9R/51
Working width m 4.6
Transport width m 4.7
Transport length m 3.5
Transport height m 2.7
The number of work racks is 9
Maximum working depth* 20 - 55 cm
The distance between the racks in a row is 51 cm
Rack type Active - Mix / Zero - Mix
Frame clearance cm 80
Recommended power hp 300 - 400
One-piece frame type
Total weight** kg 3,650 - 4,250
Transport width m 4.7
Transport length m 3.5
Transport height m 2.7
The number of work racks is 9
Maximum working depth* 20 - 55 cm
The distance between the racks in a row is 51 cm
Rack type Active - Mix / Zero - Mix
Frame clearance cm 80
Recommended power hp 300 - 400
One-piece frame type
Total weight** kg 3,650 - 4,250
TERRASTRIP ZN 8/70-75
Working width m 5.6
Transport width m 3
Transport length m 3.4
Transport height m 3
The number of work racks is 8
Maximum working depth* 20 - 55 cm
The distance between the racks in a row is 70-75 cm
Rack type Active - Mix / Zero - Mix
Frame clearance cm 80
Recommended power hp 300 - 460
The type of frame is complex
Total weight** kg 4,290 - 4,890
Transport width m 3
Transport length m 3.4
Transport height m 3
The number of work racks is 8
Maximum working depth* 20 - 55 cm
The distance between the racks in a row is 70-75 cm
Rack type Active - Mix / Zero - Mix
Frame clearance cm 80
Recommended power hp 300 - 460
The type of frame is complex
Total weight** kg 4,290 - 4,890
TITAN MACHINERY UKRAINE qualified specialists are trained by our European partners on the regular basis. We are ready to provide you with professional support together with choosing the best solutions for your working conditions.
We are ready to provide all the information about the machinery presented on our website.
Please contact us by the number or e-mail: 0800-50-8080 / sales@titanmachinery.ua
Please contact us by the number or e-mail: 0800-50-8080 / sales@titanmachinery.ua
